    [START] - Škoda Fabia RS rally2 + Absima STi-X 1:10 4WD RTR

    Code: 990010
    Not rated
    b 3 3e8f8
    €363,90
    In stock (1 pcs)

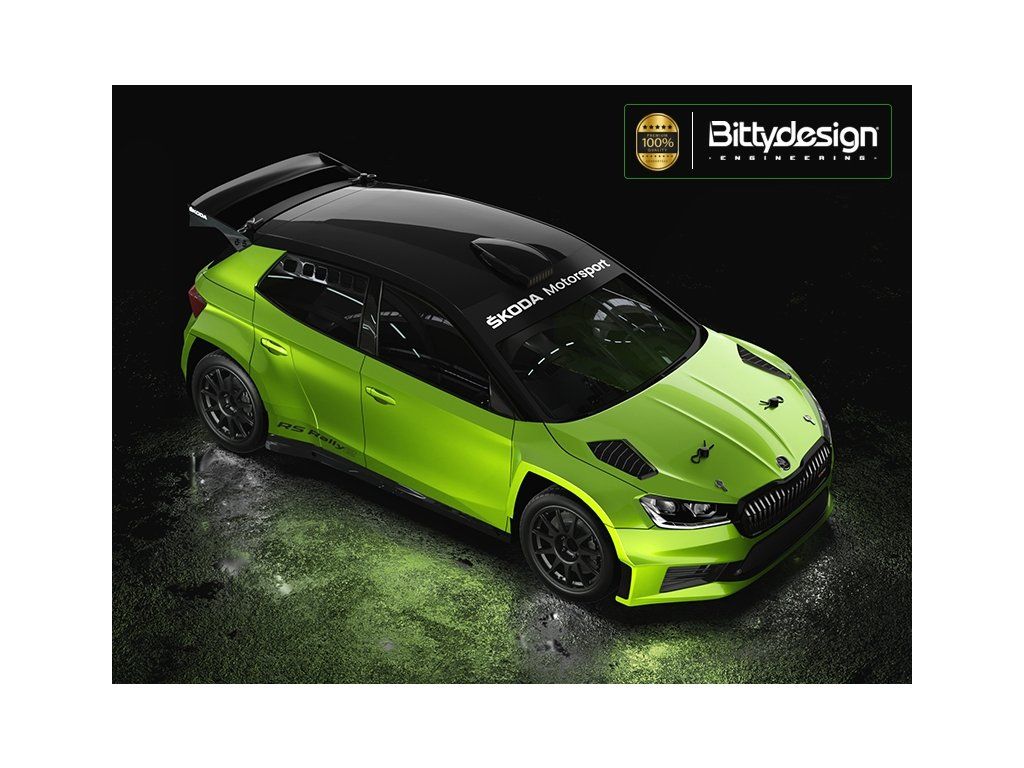

    Škoda Fabia RS Rally2 is a handmade body shell that forms the main highlight of the entire set. It is painted with great attention to detail, making the model look highly realistic and clearly stand out from standard mass-produced RC cars.
    Absima On Road STi-X 1:10 4WD RTR This RC model is primarily designed for fun and recreational driving; however, thanks to its very good driving characteristics, it can also be used for light competition in hobby categories. It is powered by a powerful brushed electric motor and reaches speeds of up to 40 km/h.

    Detailed information

    Product detailed description

    Škoda Fabia RS rally2 + Absima STi-X 1:10 4WD RTR

    Škoda Fabia RS Rally2 is a handmade body shell that forms the main highlight of the entire set. It is painted with great attention to detail, making the model look highly realistic and clearly stand out from standard mass-produced RC cars.

    For those who value high quality, maximum versatility, and a well-designed chassis concept, the new Absima 1:10 on-road chassis is here. This RC car chassis provides a perfect base for both on-road driving and rally driving on gravel surfaces.

    The chassis has been designed so that all components are quickly, directly, and easily accessible. The modern, clearly structured design allows intuitive handling and significantly simplifies all maintenance and adjustments – ideal for beginners as well as ambitious RC drivers who want to take their hobby to the next level.

    Precise and extremely robust construction of the STi-X chassis inspires confidence in its high quality. All plastic parts, including the front bumper with solid mounting, robust differential housings, durable monocoque suspension arms, and aerodynamic rear diffuser, are made from a specially developed, highly resistant plastic compound.

    In terms of drivetrain electronics, a proven simple system with a 540 21T brushed motor has been chosen. The reliable speed controller is the Absima/Hobbywing 1060 80A, and this setup allows the model to reach a maximum speed of up to 40 km/h. The drivetrain has increased protection against water and moisture (not waterproof).

    For remote control, the new Absima CR4S-EVO 2.4 GHz RC system is used. The set consists of a modern 4-channel transmitter and a 6-channel receiver with a failsafe safety function.

    Aero-X_1.jpgPlastové The plastic components and tub-style chassis construction offer optimal flexibility, which increases traction and additional mechanical grip. The raised side walls also reduce the entry of dirt, stones, and other foreign objects into the chassis.


    Multiple shock absorber mounting positions allow flexible adjustment of shock angle, so the chassis can be optimally adapted to different surface conditions. Monocoque suspension arms and the overall compact suspension design give the chassis exceptional robustness and stability. Optional stabilizers further stiffen the chassis, improving driving dynamics and steering precision.



    Front uprights and rear wheel hubs are designed to be particularly robust and reliably absorb even stronger impacts. The suspension arms also offer multiple shock mounting points, allowing easy and precise adjustment of shock angles for different driving conditions.

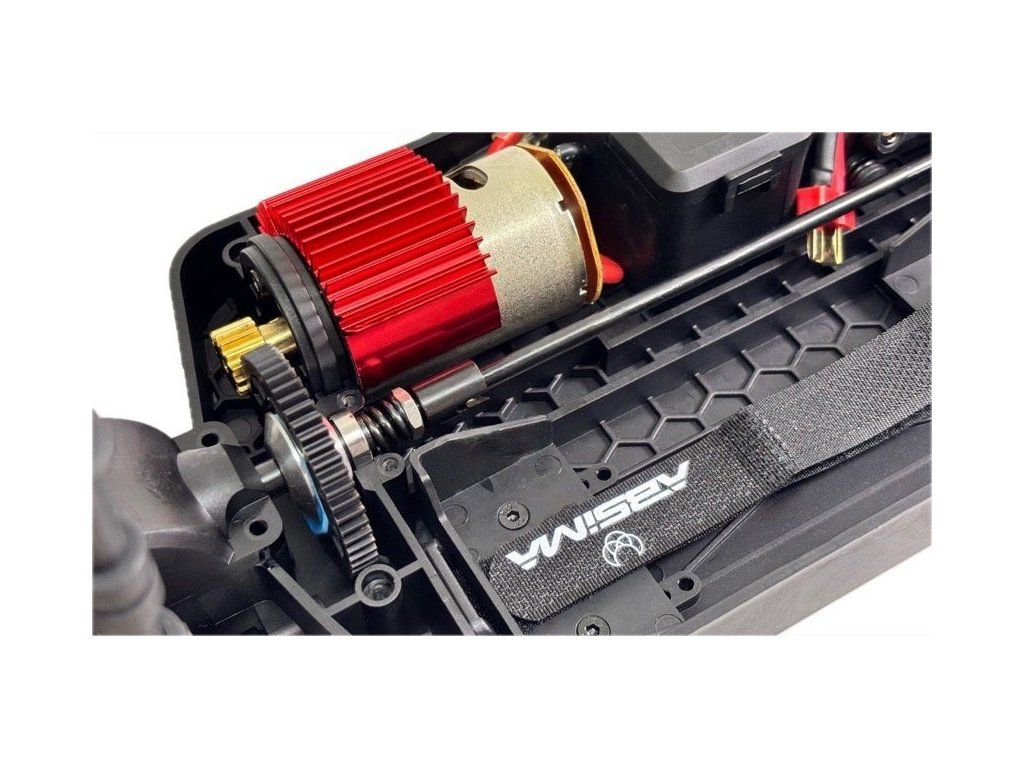

    The powerful 540 21T brushed electric motor reaches 25,300 rpm, ensuring strong acceleration and sufficient power. The gearbox cover and motor mount can be quickly opened for inspection. The gear ratio can be adjusted by changing the pinion gear from 15 teeth (standard) up to 18 teeth, allowing flexible tuning. The main driveshaft transmits torque through an adjustable slipper clutch, which evenly distributes power to the front and rear bevel gear differentials.


    The adjustable battery holder with Velcro strap offers maximum flexibility and is compatible with a wide range of battery types. It is suitable for 7.2V NiMH batteries as well as 2S (7.4V) LiPo batteries. This allows safe and reliable mounting of virtually any standard RC battery. Aluminium threaded shock absorbers allow precise adjustment of spring preload for different surfaces and driving styles. The suspension can be further optimized by changing springs and shock oil (both available as optional upgrades).


    SPECICATIONS:

    Length: 470 mm
    Width: 200 mm
    Height: 150 mm
    Wheelbase: 262 mm
    Standard ground clearance: 15 mm
    Motor: 540 21T brushed, 25,300 rpm
    Pinion gear: 15T / Mod. 0.8
    Spur gear: 54T / Mod. 0.8
    ESC: HW 1060 80A
    Recommended battery: 7.2V NiMH or 7.4V (2S) LiPo max 30C
    RC system: Absima CR4S-EVO 2.4GHz 4-channel
    Steering servo: 6 kg torque
    Metal oil-filled shocks with adjustable preload
    Full ball bearing set
    Total gear ratio: 9.36:1
    Weight: 1,490 g

    The package includes a fully assembled model equipped with all necessary electronics, a transmitter, a 7.2V NiMH drive battery, a charger for the drive battery, and 4 AA batteries for the transmitter.

    Nothing is missing for immediate driving!
